DeMeet multisensor measuring machines

The increasing miniaturization and complexity of product features leads to moredifficult measuring and control procedures.

Measuring systems that are only for optical or contact measurements are often no longer sufficient, in this case multisensor measuring machines are optimal for geometric quality control.

When measuring certain characteristics the physical limits of non-contact DeMeet video measuring machines can also exceed measurements with a touch probe (Contact measuring system).

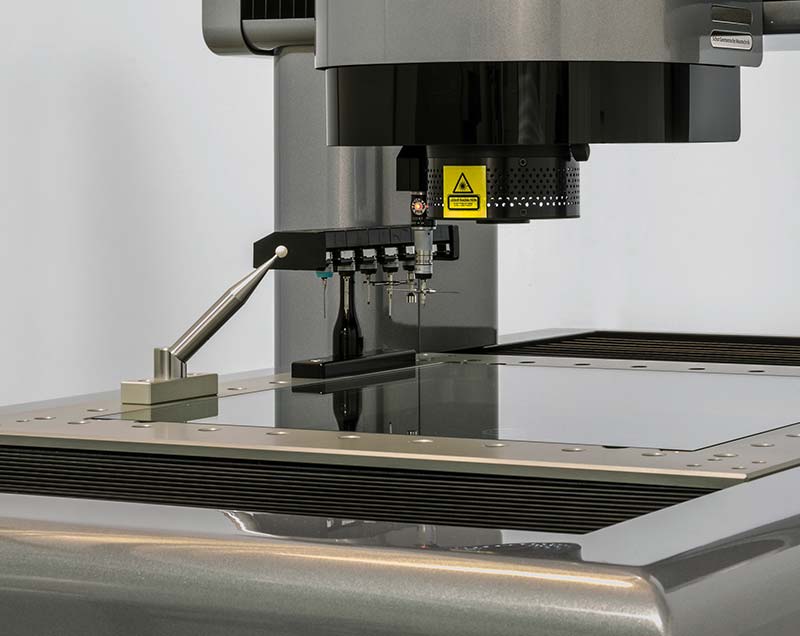

With the DeMeet combo model, optical and contact measurement are both seamlessly integrated and measurements can be made within just one measurement process by the optics and the touch probe and also be carried out within a characteristic.

Probe measurements can also be helpful in the creation of a complex 3D product orientation.

DeMeet Design and Quality

The application of quality components made by Schut and by well-known, specialized manufacturers ensures excellent performance and high accurate measurements.

With the new design of the DeMeet measuring machine series no concessions have been made to accuracy and reliability. The new visually screwless cover design provides a better protection in the production environment and is highlighted with nickel-plated aluminum details which can be personalized.

The open design of the DeMeet allows for easy operation and loading of the machine from all sides. The accuracy of the DeMeet measuring machines is guaranteed by a CAA 3D correction model (Computer-Aided Accuracy, error compensation).

Tastermodule und Taster

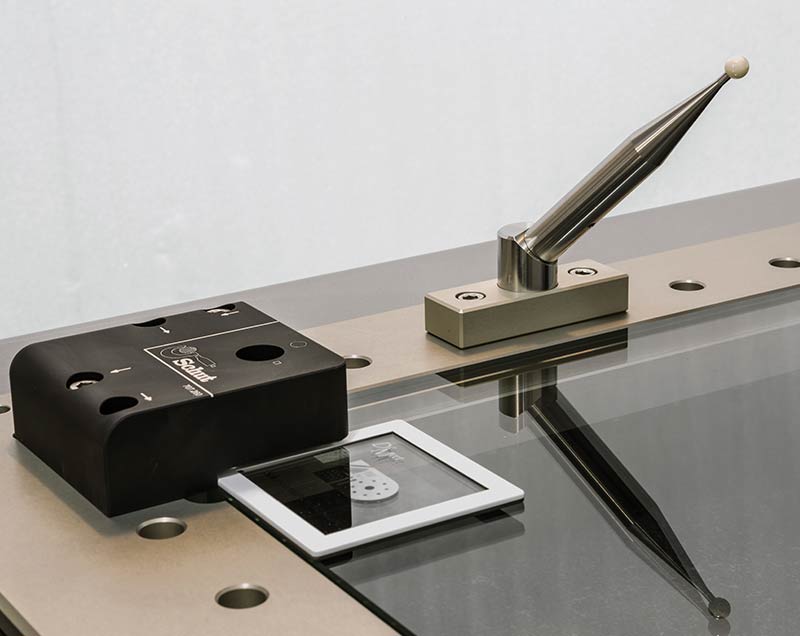

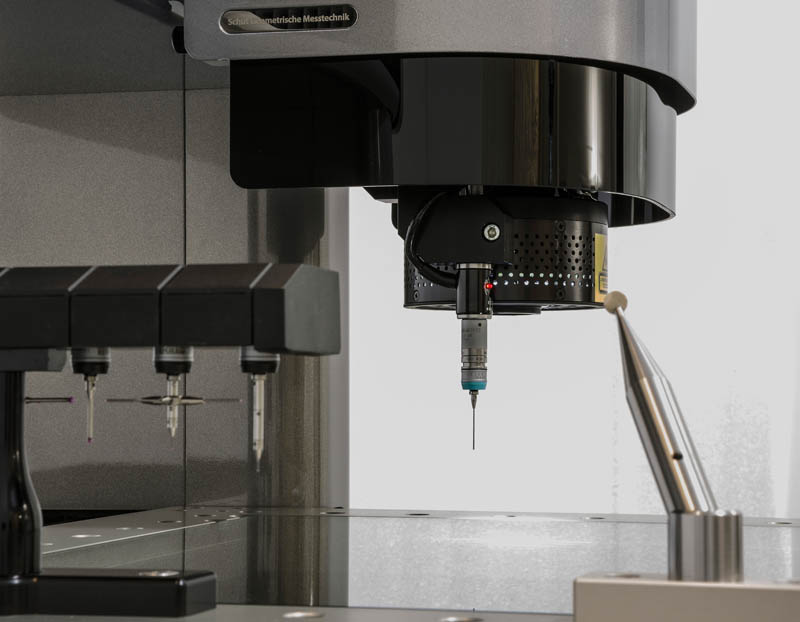

Standardmäßig wird ein Renishaw TP20 System mit einer 5-Wege Tasterkonfiguration geliefert. Auf Anfrage sind verschiedene Tastermodule, Systeme und Tasterkonfigurationen verfügbar. Mehrfache Tastermodule können verwendet werden, um die Tasterkonfiguration auf dem Modul zu belassen und um eine kürzere Rüstzeit bei Messungen zu erreichen, bei denen andere Tasterkonfigurationen erforderlich sind. Zusätzlich zu dem Standard Tastsystem kann optional ein Wechselrack (automatische Taster-wechselkonfiguration) verwendet werden. Mit dem Tasterwechselrack können Tastermodule innerhalb eines Messablaufes automatisch aus-getauscht werden.

Taster Qualifikation

Fixture systems for DeMeet

A secure positioning of the measurement object is crucial for an accurate measurement result and the clamping system can also be used for pallet measurements.

DF Fixture system
DF-System is a fixture system developed and produced by Schut and designed for constructing 3D product fixtures, particularly for optical measurements, and is fully compatible with the measuring table of the DeMeet measuring machines.

Alufix Fixture system
Alufix is a flexible fixture system made of high-tensile aluminum. Alufix is a uniquely designed modular fixture system to prepare a product-fixture in a short time and is easy to mount and specially suitable for fixtures for heavier measuring objects

Specialized Fixture systems
If products have to be measured on a pallet where a standard fixturing system does not offer a correct solution - for example due to the unusual shape or small dimensions of the product - then a customized system can be the solution.

More about Fixture systems
